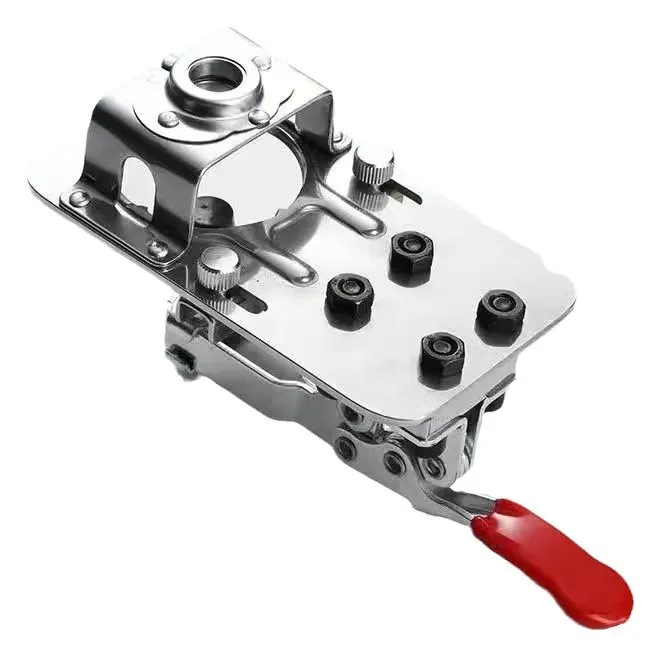

3-in-1 Precision Hinge Drilling Jig

Name: 3-in-1 Precision Hinge Drilling Jig
SKU: QE3583858-默认
Price: 53.99 USD
Availability: InStock

$53.99 USD

Qty

Buy 1 Hinge Drilling Jig Buy 2 Hinge Drilling Jigs - Free Shipping Buy 3 Hinge Drilling Jigs - Free Shipping

Product Review · Updated Today · 3 Min Read

Precision Hinge Drilling Jig

Cleaner layout, confident results. Clamp, guide, and create repeatable hinge-cup recesses.

Why It Works

Bearing-guided sleeve reduces wobble

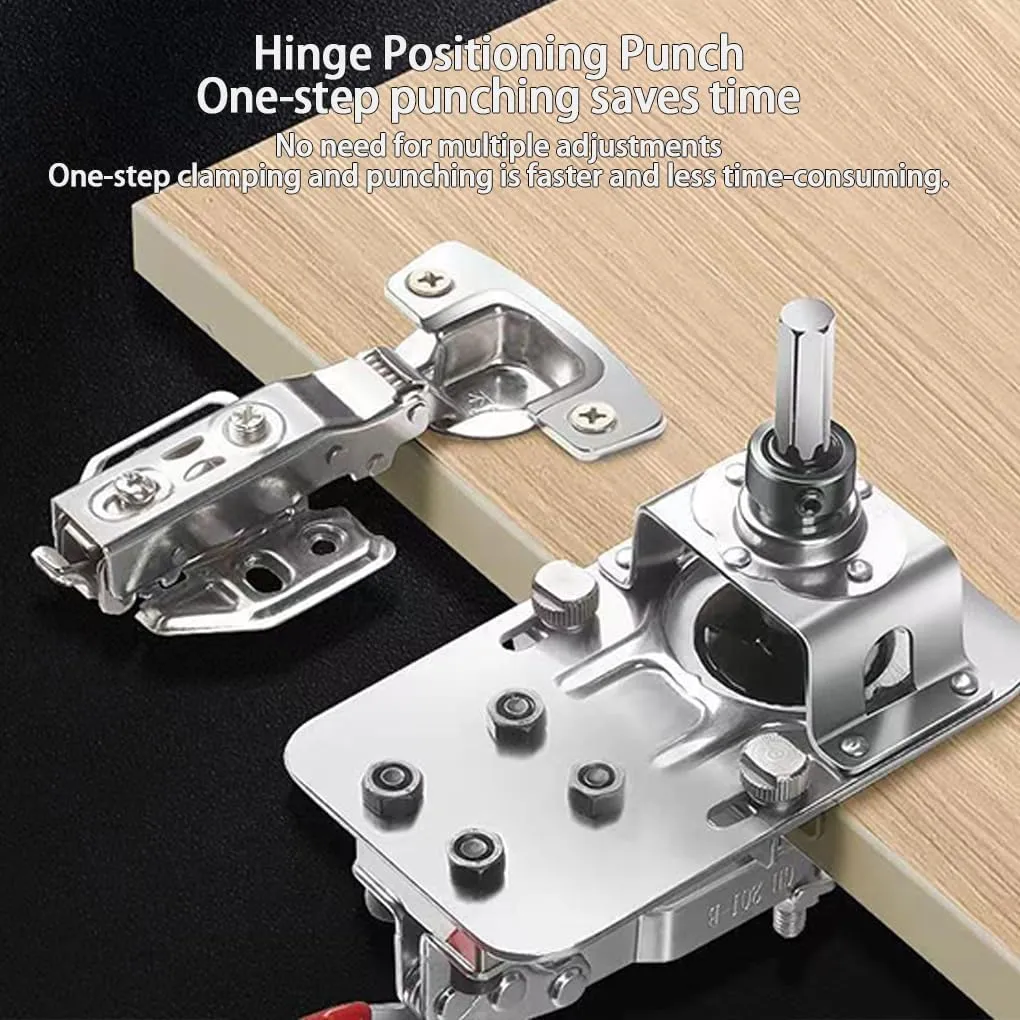

One-step clamp and alignment
35mm cup holes for standard hinges
Repeatable setup across doors

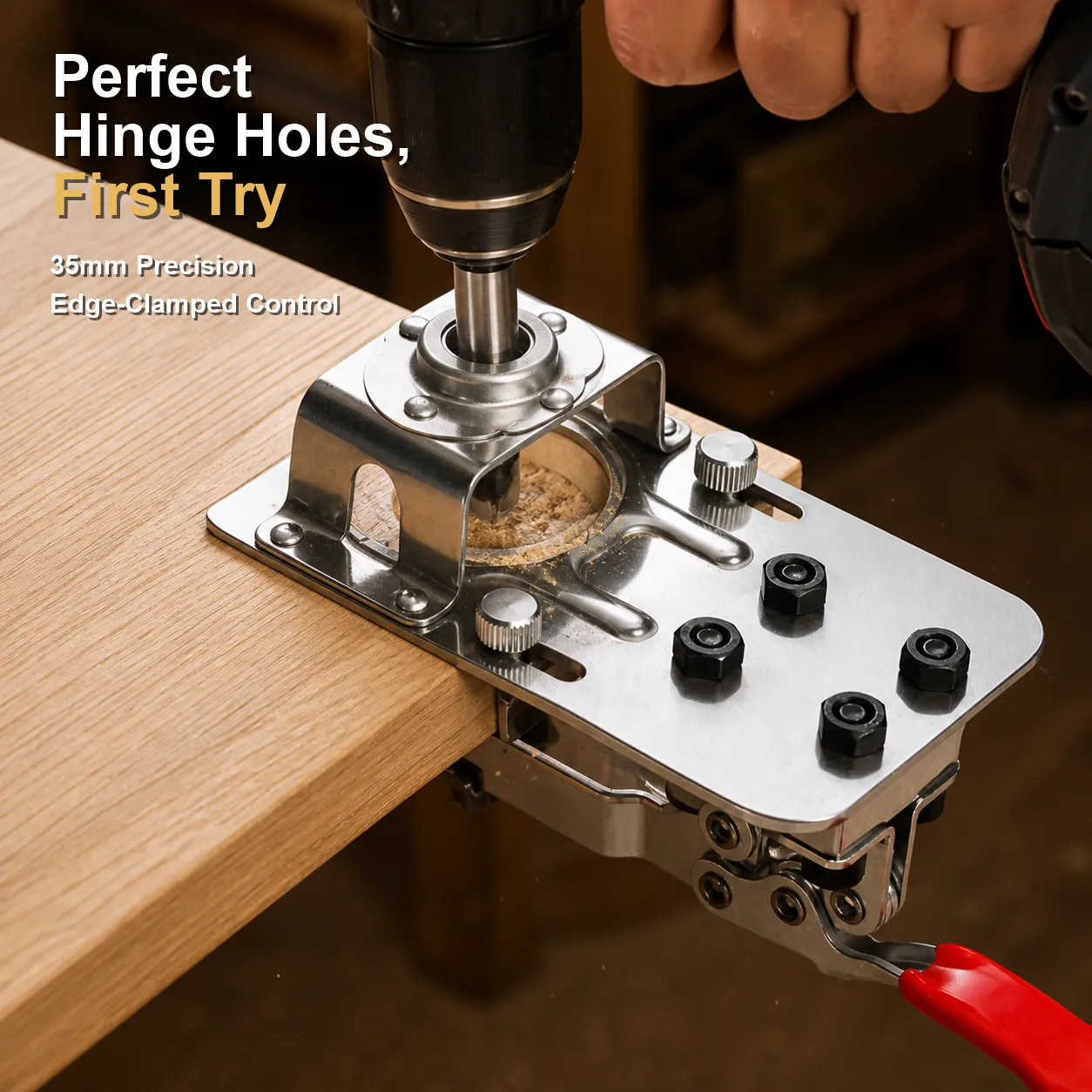

Primary JobPosition and drill 35mm concealed-hinge cup recesses

MaterialSilver metal body with adjustable hardware

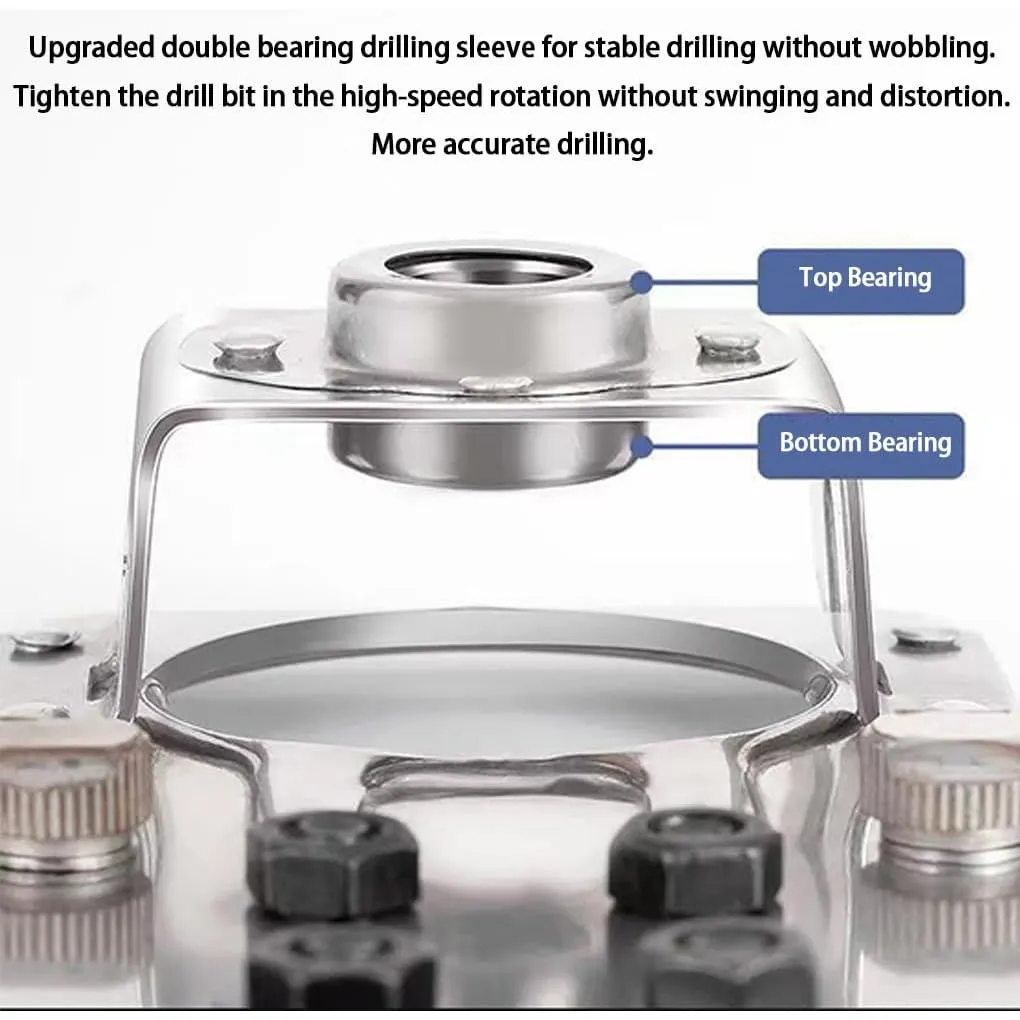

GuidanceDouble-bearing sleeve

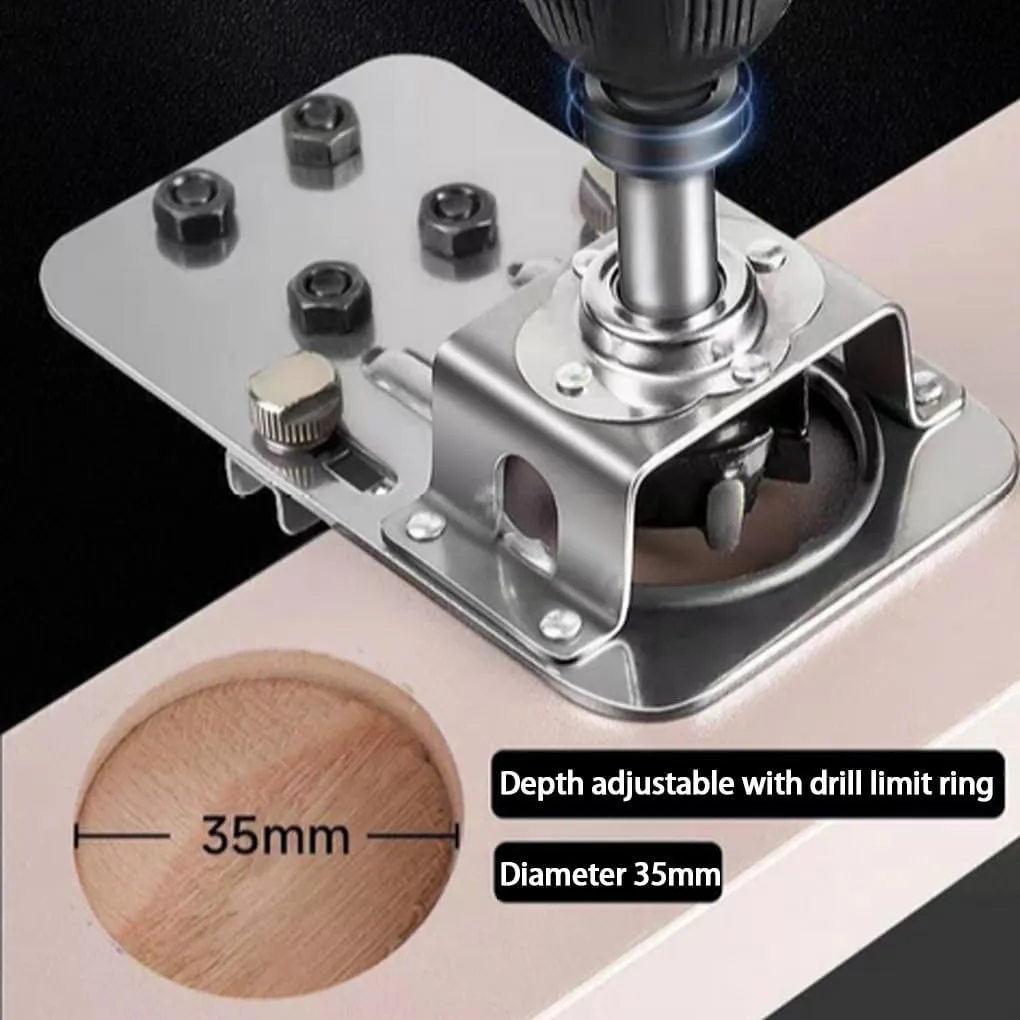

Cup Size35mm

Included3-in-1 jig only; no pilot-hole guide

RequiresCompatible drill and concealed hinges

Key Benefits

Built for faster, more repeatable hinge work.

BENEFIT 01

One-Step Positioning

Clamp and align from one compact setup.

BENEFIT 02

Stable Drill Guidance

Double-bearing sleeve helps reduce wobble.

BENEFIT 03

35mm Cup Holes

Designed for common concealed-hinge cup drilling.

BENEFIT 04

Repeatable Setup

Keep your process consistent across multiple doors.

BENEFIT 05

Accurate Cutter Control

Metal body grips the work edge while bearing-guided sleeve centers the cut.

BENEFIT 06

Clean Recesses

Set, clamp, guide, and clear chips for a precise recess.

BENEFIT 07

Simple Workflow

Four steps: set position, clamp, guide drill, clear and install.

Real Customer Feedback

“The clamp setup felt solid, and I didn’t have to keep rechecking the position before drilling. That made my first cabinet-door project much less stressful.”

Mark T. · Ohio

“I used it while refreshing our kitchen doors. The finished recess was clean, and seeing the hinge sit where I expected was a huge relief.”

Alicia R. · Georgia

“The bearing guide is the part I noticed most. The drill felt easier to keep straight, especially on the darker hardwood door I was working on.”

Devon P. · Michigan

“I finished a small cabinet over the weekend and both hinges lined up without the usual back-and-forth. The door closes smoothly now.”

Robert K. · Oregon

Choose Quantity

Select the option that fits your project needs.

Buy 1 Hinge Drilling JigPerfect for single-door projects or trying out the jig.

Buy 2 Hinge Drilling Jigs - Free ShippingIdeal for multiple doors or sharing with a friend.

Buy 3 Hinge Drilling Jigs - Free ShippingBest value for larger cabinet jobs or workshops.

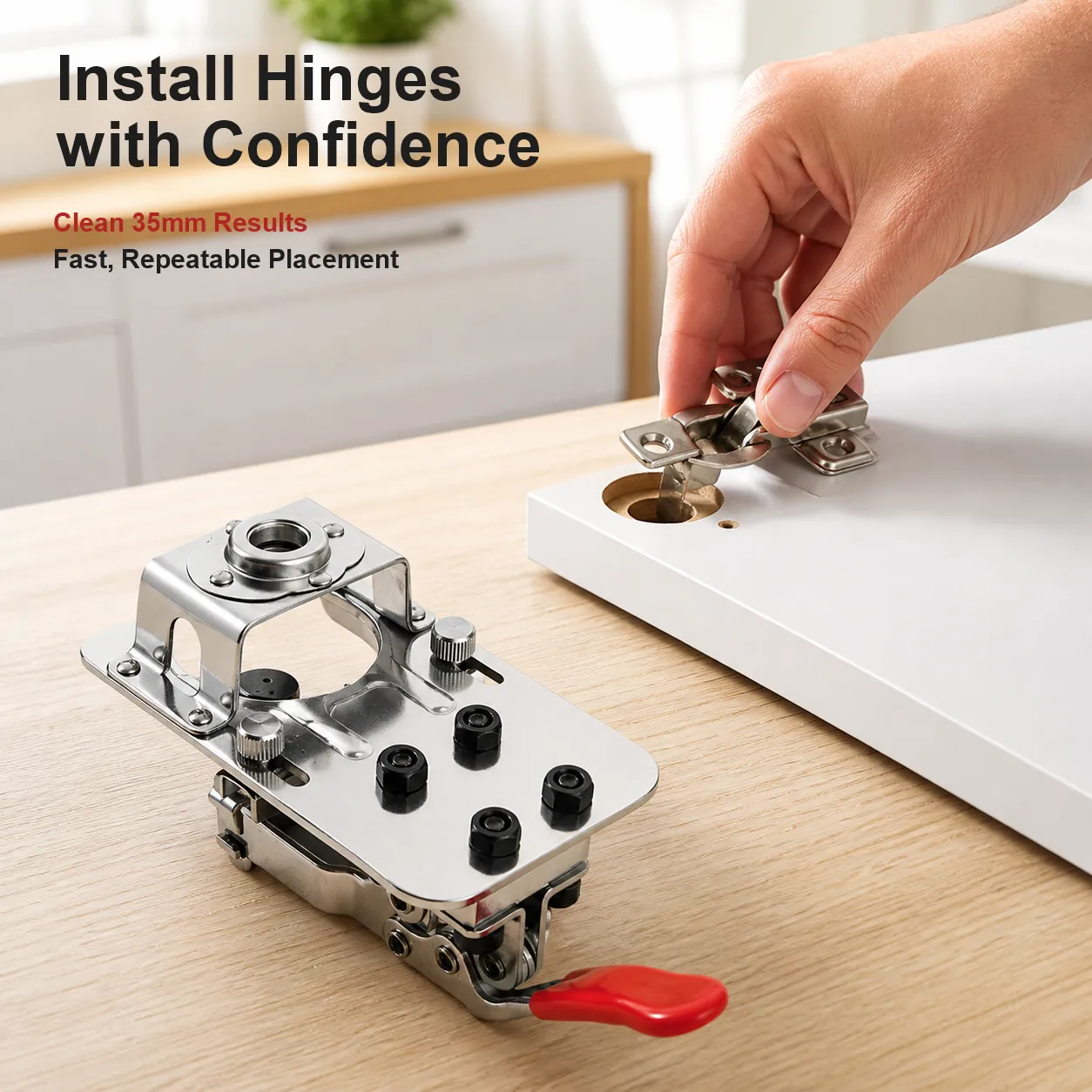

Cabinet door hinge installation

Kitchen cabinet refresh

Custom cabinet building

Furniture repair

For DIY and professional use. Always use compatible drill bits and follow safety guidelines.

FAQ

What is this jig designed to do?

It helps position and guide drilling for 35mm concealed-hinge cup recesses on cabinet doors.

Do I still need a drill?

Yes, you provide a compatible drill for cutting the recess.

Does this version include a pilot-hole guide?

No, this is the 3-in-1 version without the separate pilot-hole guide add-on.

Why does the bearing sleeve matter?

It helps support a straighter, steadier drilling motion and reduces side-to-side wobble.

Can I use it for repeated cabinet-door work?

Yes, it supports a more consistent workflow across multiple doors.

What if I need help with setup or my order?

Contact our support team for help with setup, missing parts, transit damage, or other issues.
